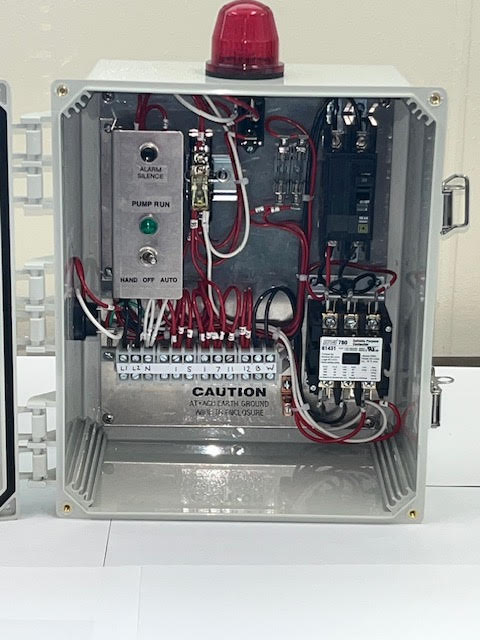

Atlantis Pump APD Series UL508A Control Panel
AP 1Hp - 2Hp Duplex 1Ph Panel
APD2301NC-2Hp / APD1151NC-1Hp
Enclosure: Type 4X polycarbonate
Start Kit: NONE Must be built into pump
Circuit breaker: Square D
Contactor: Mars DP
Relays: Idec
Alarm: Buzzer and Light
Run light: Amber neon pilot light
Bracket: Bright aluminum Z- Plate
Fuse: Littelfuse Fuse and Fuse Block
Terminal strip: Marathon box type lugs sectional
Visible alarm: 360-degree flashing
Audible alarm: Floyd Bell piezo buzzer
Wiring: Full Diagram included
Certifications: UL 508A
Level control requires 4 floats
Made in America
Optional Accessories / External Weights / Float Switches - 10’-50’ / Pipe Clamps
5 Year Parts and Labor Warranty
Click Link for PDF of Product
