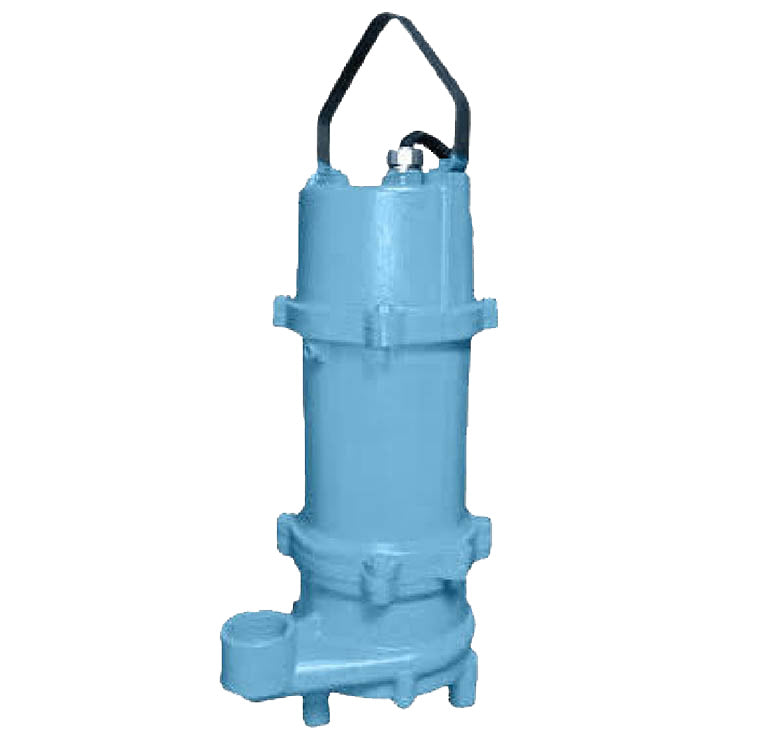

APG Series Grinder Pump 2hp 208/230/3 Traditional Cutter

Atlantis Pump APG Series Submersible Grinder Pump Features

APG223108C  2hp 108' Max Tdh

APG223130C  2hp 132' Max Tdh



Hp: 2

VOLTAGE: 208/230/3 3450 RPM, 60Hz

LIQUID TEMPERATURE: 120 degrees F (Continuous) 140 degrees F (Intermittent)

VOLUTE: Cast Iron ASTM A-48, Class 30

SEAL PLATE: Cast Iron ASTM A-48, Class 30

IMPELLER: Ductile Iron, 10 vane, Open with Pump-out Vanes, Dynamically Balanced

TRADITIONAL GRINDER IMPELLER: Hardened 440C Stainless Steel

GRINDER PLATE: Hardened 440C Stainless Steel

SHAFT: 420 Stainless Steel

SEAL: Design Dual Mechanical Seals

Motor Side. Rotating Face - Carbide - Stationary Face SiC

Pump Side. Rotating Face - SiC - Stationary Face - Face Buna-N - Elastomer

BEARING {UPPER): Single Row, Ball, Oil Lubricated

BEARING {LOWER): Single Row, Ball, Oil Lubricated

SLEEVE BEARING: Bronze with Oil Groove

HARDWARE: 300 Series Stainless Steel

O-RINGS: Buna-N

CORD ENTRY: 30Ft Cord

COMPRESSION GROMMET: Outer Jacket Seal Epoxy Potted - Inner Conductor Seal Triple Sealed Design

TEMPERATURE SENSOR: On-Winding  Oil Filled, Class F
