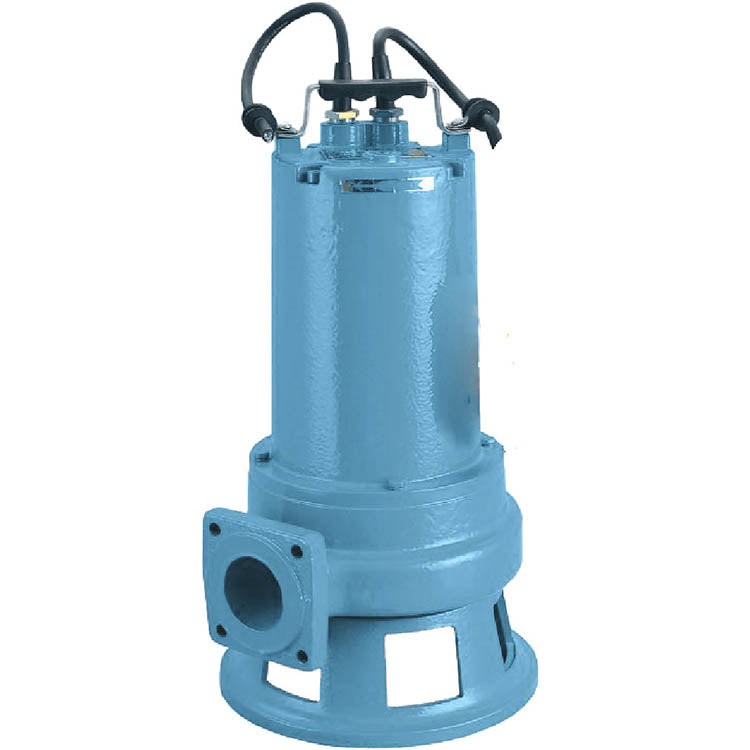

APG Series Grinder Pump 1 HP 230V 1 PH 20' Cord.

Atlantis Pump APG Series Submersible Grinder Pump

Pump that is designed to meet the demands of wastewater and sewage applications.

Atlantis Pump APG Series Submersible Grinder Pump Features

• DISCHARGE 2“ NPT Vertical
• LIQUID TEMPERATURE .. Up to 170ºF(76ºC)
• Continuous VOLUTE ....................... Cast Iron ASTM A-48,Class 30 MOTOR HOUSING
•  Cast Iron ASTM A-48,Class 30 SEAL PLATE .................. Cast Iron ASTM A-48,Class 30
• IMPELLER Carbon Steel
• SHAFT 420 Stainless Steel
• O RING Buna-N
• SEAL: Design Dual Mechanical Seals
• Motor Side. Rotating Face - Carbon
• Stationary Face - Silicon Carbide
• Pump Side. Rotating Face - Silicon Carbide
• Stationary Face - Silicon Carbide Elastomer - Buna -N
• Hardware - 300 Series Stainless
• CABLE ENTRY 20 Ft strain relief power cord
• UPPER BEARING Single Row, Ball, Oil lubricated
• LOWER BEARING Single Row, Ball, Oil Lubricated
• MOTOR Includes Overload Protection in the Motor
• Air Filled
• Single Phase ....... 3450 RPM, 60Hz, 115 or 230 V
• Capacitor Start / Capacitor Run Three Phase ........ 3450RPM, 60Hz, 230 / 460V
• OPTIONAL EQUIPMENT: Cord Length & Float Switch

Cut sheet below

Model: APG1002301
