APG Series Grinder Pump 1 HP 115V 1 PH 20' Cord.
APG Series Grinder Pump 1 HP 115V 1 PH 20' Cord.
Regular price
$1,125.00 USD
Regular price
Sale price
$1,125.00 USD
Unit price
/
per

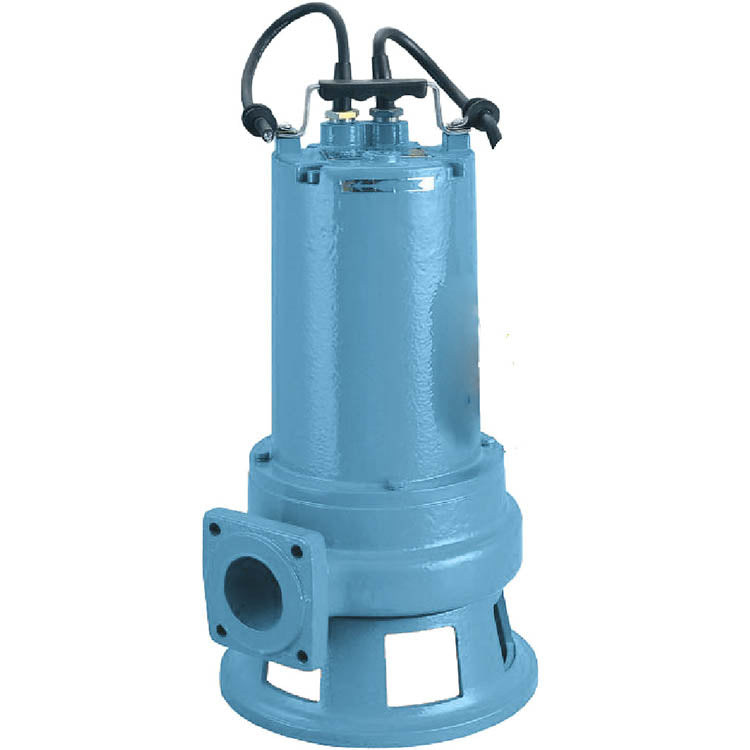

Atlantis Pump APG Series Submersible Grinder Pump
Pump that is designed to meet the demands of wastewater and sewage applications.
Atlantis Pump APG Series Submersible Grinder Pump Features
- DISCHARGE 2“ NPT Vertical
- LIQUID TEMPERATURE .. Up to 170ºF(76ºC)
- Continuous VOLUTE ....................... Cast Iron ASTM A-48,Class 30 MOTOR HOUSING
- Cast Iron ASTM A-48,Class 30 SEAL PLATE .................. Cast Iron ASTM A-48,Class 30
- IMPELLER Carbon Steel
- SHAFT 420 Stainless Steel
- O RING Buna-N
- SEAL: Design Dual Mechanical Seals
- Motor Side. Rotating Face - Carbon
- Stationary Face - Silicon Carbide
- Pump Side. Rotating Face - Silicon Carbide
- Stationary Face - Silicon Carbide Elastomer - Buna -N
- Hardware - 300 Series Stainless
- CABLE ENTRY 20 Ft strain relief power cord
- UPPER BEARING Single Row, Ball, Oil lubricated
- LOWER BEARING Single Row, Ball, Oil Lubricated
- MOTOR Includes Overload Protection in the Motor
- Air Filled
- Single Phase ....... 3450 RPM, 60Hz, 115 or 230 V
- Capacitor Start / Capacitor Run Three Phase ........ 3450RPM, 60Hz, 230 / 460V
- OPTIONAL EQUIPMENT: Cord Length & Float Switch
APG1001151 Specification Sheet - Click Here
Model: APG1001151
